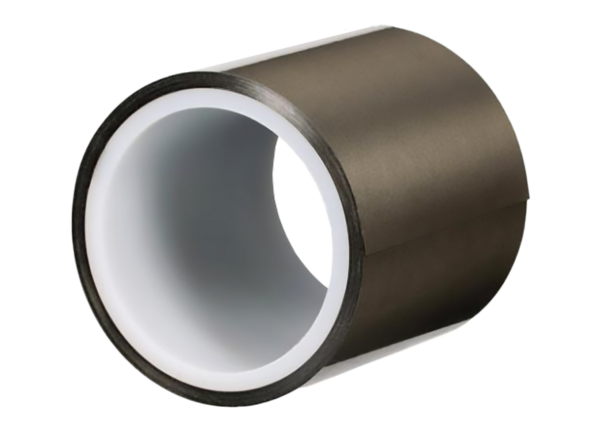

3M Electrically Conductive Fabric Tapes
3M Electrically Conductive Fabric Tapes are offered in single-sided and double-sided tapes ranging from 25mm to 500mm in width and 10m to 30m in length. These tapes provide excellent XYZ-axis-based conductivity, reliable contacts to small-size grounding areas, and excellent EMI shielding and electrical reliability over time. The fabric tapes are acrylic-based adhesives with high adhesion and good grounding performance on many surfaces. Typical applications include grounding and EMI shielding in equipment and components.
Features
- 25mm to 500mm width
- 10m to 30m length
- XYZ-conductivity
- Excellent EMI shielding
Specifications
- 1020BC series:
- 0.015Ω electrical resistance through adhesive
- 0.1Ω surface resistance of black foil
- 1050TC series:
- 0.015Ω electrical resistance through adhesive
- 3304BC-S:
- 45µm thickness
- 1300gf/in adhesion to SUS
- 0.1Ω XY-axis resistance of the backing
- 0.05Ω electrical resistance through adhesive
- 5113DFT series:
- 0.03Ω electrical resistance through Z-axis
- 0.07Ω electrical resistance through XY-axis
- 5113SFT series:
- 0.07Ω electrical resistance through XY-axis
- 50μm thickness
- 9772 series:
- 0.015Ω electrical resistance through adhesive (FS and BS side)
Applications
- EMI shielding in equipment and components
