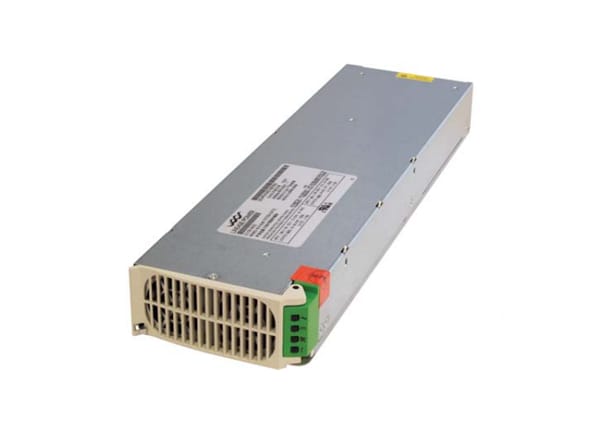

ABB CP Compact Power Line High-Efficiency Rectifiers
ABB CP Compact Power Line High-Efficiency Rectifiers are complete distributed power systems of rectifier modules for end-application needs. The CP series is provided in a high-density 1U package and offers 2000W to 2725W of hot-swappable, N+1 redundant power. Standard features include RS485 and I2C interfaces, remote on/off, remote sense, active current sharing, output voltage margining, and overvoltage, overcurrent, and over-temperature protection. Universal AC and wide-ranging DC input voltage units are available.
Features
- 1U profile with only 13.85” depth
- Power densities in excess of 30W/in3
- 93% peak efficiencies
- Constant current characteristic
- Several mating shelves and controller options available
- N+1 redundancy / hot-swap operation
- 5VSB at 1A standby voltage
- Dual I2C and RS485 interfaces
- Active load sharing, remote on/off, and sense functions
Applications
- Wireless/cellular
- Energy systems
- Central office switching
- PCS installations
- Bulk power for power architecture
- Automatic test equipment
Specifications
- Universal AC input and wide-ranging DC input units
- -40°C to +75°C operating temperature
- NEBS GR-63-CORE Level 4
- IEC/UL/CSA/EN60950-1, CE Mark (LVD), TUV
- FCC-A & EN55022-A at rack level or with filter
