Abracon APAKC2506A-SG3 Multi-band GNSS Patch Antenna

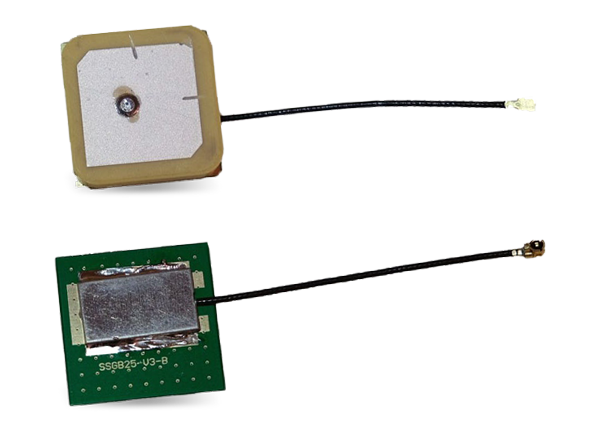

Abracon APAKC2506A-SG3 Multi-band Global Navigation Satellite System (GNSS) Patch Antenna is a compact active patch antenna specifically designed for GPS/GLONASS/Galileo/Beidou applications. This multi-band patch antenna facilitates integrated Low-Noise Amplifiers (LNA) that offer 32dB LNA gain. The APAKC2506A-SG3 multiband GNSS patch antenna operates at 1555MHz to 1615MHz frequency range and features Right Hand Circular Polarization (RHCP). This multi-band patch antenna delivers 50Ω impedance and comes with RF coax cable and IPEX connector in 25mm x 25mm x 6.9mm compact dimensions. The Abracon APAKC2506A-SG3 Multi-Band GNSS patch antenna is ideal for applications in the Internet of Things (IoT), M2M, remote technology monitoring, geofencing, surveying, and mapping systems.


  • Multiband GPS/GLONASS/Galileo/Beidou GNSS patch antenna
  • Dielectric ceramic antenna
  • Active GNSS with LNA
  • RHCP polarization
  • Comes with RF coax cable and IPEX connector


  • GPS/GLONASS/Galileo/Beidou
  • M2M
  • Remote technology monitoring
  • IoT
  • Geofencing
  • Surveying and mapping systems
  • Logistics


  • 1555MHz to 1615MHz operating frequency range
  • -40°C to +85°C operating temperature range
  • 25mm x 25mm x 6.9mm dimensions
  • 32dB LNA gain
  • 1.5 VSWR
  • 1.1dB noise figure
  • 50Ω impedance

DImensions (mm)

Mechanical Drawing - Abracon APAKC2506A-SG3 Multi-band GNSS Patch Antenna
