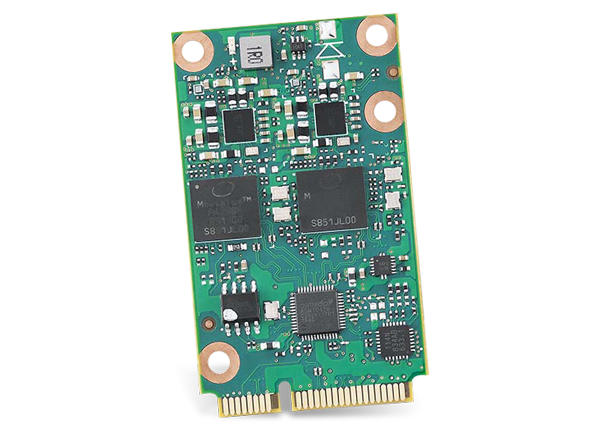

Advantech VEGA-330 Intel® Movidius™ Accelerator Card

Advantech VEGA-330 Intel® Movidius™ Accelerator Card is an ultra-compact and low power consumption Edge AI mini PCIe module with an onboard Intel Movidius Myriad X VPU. This module is scalable for multiple video streams edge inference. The VEGA-330 module includes a built-in Edge AI suite. This Edge AI suite features OpenVINO™ toolkit, pre-trained modules, a deployment wizard, and third party AI SDK. The VEGA-330 module supports Windows 10 Enterprise, Ubuntu 16.04.3 LTS, and CentOS 7.4. This module operates at 0°C to +45°C temperature range. The VEGA-330 also features passive cooling and hardware acceleration for common deep neural networks. Advantech VEGA-330 Intel Movidius Accelerator Card is ideal for use in facial detection, pedestrian tracking, human pose estimation, vehicle detection, and optical inspection.

Features

  • Built-in Edge AI Suite
    • OpenVINO toolkit
    • Pre-trained models
    • Deployment wizard
    • 3rd party AI SDK
  • TensorFlow and Caffe framework support
  • Intel Movidius Myriad X VPU onboard
  • Ultra-compact and low power consumption
  • Hardware acceleration for common deep neural networks
  • Scalable for multiple video streams edge inference

Specifications

  • OS Support
    • Windows 10 Enterprise
    • Ubuntu 16.04.3 LTS
    • CentOS 7.4
  • 0°C to +45°C operating temperature range
  • PCIe Gen2 × 1 signal interface
  • 0.7m/s airflow
  • Two Myriad × MA2485 SoC
  • Full-size Mini PCIe form factor

Applications

  • Facial detection
  • Pedestrian tracking
  • Human pose estimation
  • Vehicle detection
  • License plate recognition
  • Optical inspection
  • AI model launcher
  • Deployment reference
  • CPU / VPU monitoring

Overview

Block Diagram - Advantech VEGA-330 Intel® Movidius™ Accelerator Card

Dimensions

Mechanical Drawing - Advantech VEGA-330 Intel® Movidius™ Accelerator Card
Gepubliceerd op: 2019-10-25 | Bijgewerkt op: 2023-04-06
