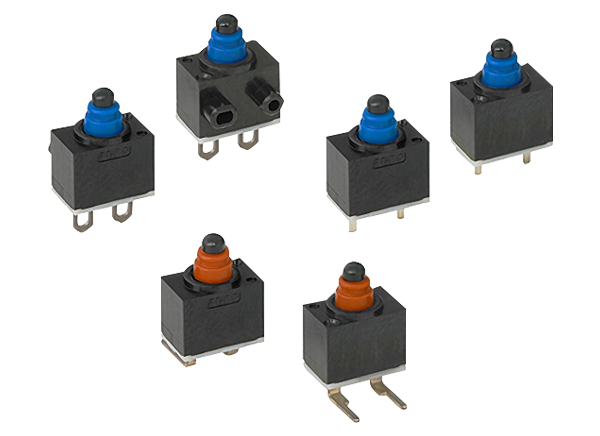

Alps Alpine SPVQ8 Waterproof Detector Switches
Alps Alpine SPVQ8 Detector Switches are waterproof switches designed for automotive use and provide up to 1 million cycles operating life. The SPVQ8 Waterproof Detector Switches offer two-way operation and a 0.1A, 12VDC maximum rating. SPV8Q also features 500mΩ maximum initial contact resistance and operates over a -40°C to +85°C temperature range.
Features
- Waterproof
- 0.1A, 12VDC maximum / 50μA, 5VDC minimum rating
- Contact resistance (initial / after operating life)
- 500mΩ max / 1Ω max (standard type)
- 500mΩ max / 3Ω max (long-life type)
- Operating life
- 300,000 cycles (standard type)
- 1 million cycles (long-life type)
- 1±0.5N operating force
- Two-way operation
- -40°C to +85°C operating temperature range
- Designed for automotive use

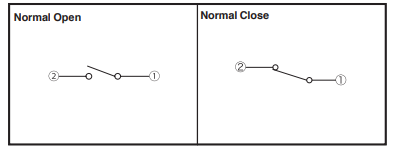

Circuit Diagram
