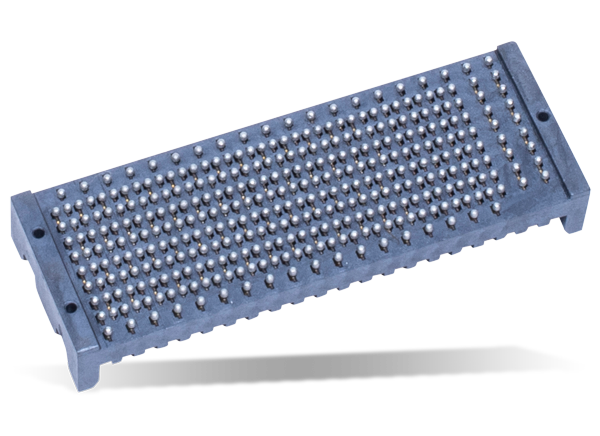

Amphenol TCS Chameleon® Mezzanine Connectors feature a highly adaptable system with flexibility, performance, and density. With Chameleon, users can mix and match the pin field as determined by design demands. The flexible stack heights allow designers to achieve a taller stack height with minimal loss of performance. Amphenol TCS Chameleon Mezzanine Connectors offer speeds up to 25Gbps+ to meet the demand for faster, smaller, and more compact application requirements.
Pin-field flexibility - differential, single-ended, and/or power (2.5A/contact) tooled configurations available
6mm and 10mm stack heights
0.9mm x 1.35 mm in the space determined by the designer
Highly reliable BGA attachment
Pin counts 40 to 500+ and pair counts 16 to 160
Impedance: 100Ω +/- at 10% for 6mm and 10mm models
