Amphenol-Tuchel ecomate® Plastic Connectors

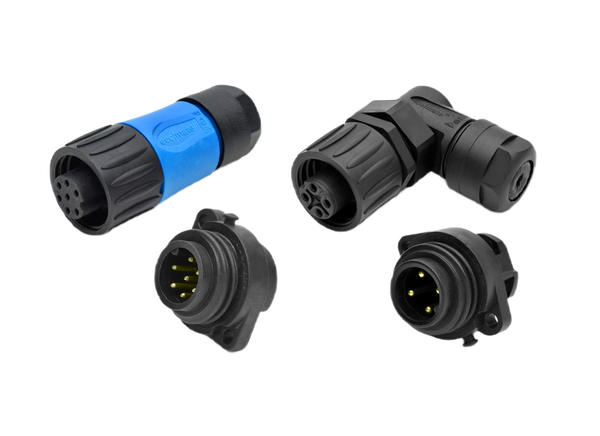

Amphenol-Tuchel ecomate® Plastic (C16) Connectors provide an IP65/67 rating (in mated condition) for industrial applications and incorporate the latest technology in a sealed, high-impact, lightweight, thermoplastic design. The ecomate® Plastic connectors feature a rapid threading coupling system for easy, reliable mating/unmating. The connectors are also available as ecomate® Overmolded Cable Assemblies with integrated uni-directional strain reliefs, highly flexible cables resistant to a wide range of chemical fluids while UV and corrosion-resistant. These circular plastic connectors are ideal for industrial applications. The Amphenol-Tuchel ecomate® Plastic (C16) Connectors are available in one shell size and four insert arrangements.
Features
- Circular connectors with 3+PE and 6+PE contacts
- Housing components made from a premium molding material
- Straight or angled cable housing
- 1x shell size and 4x insert arrangements
- Up to 22A at +40°C/600V
- IP65/67 protection when mated
- Clamping ring or internal strain relief
- 360° shielding
- Quick and easy assembly
- Screwed cable gland with clamping ring
- Rapid threading coupling system
- Thermoplastic housings
- Strain relief and mounted gasket all in one component
- Cable housing, straight or angled, for the 6mm to 12.5mm cable diameter range
- 26AWG to 14AWG wire range
- Robust thread for the screwed cable gland
- Ergonomically designed product range for safe handling
- Pre-loaded ground contact
- Fastening for the protective covers on the housing of the receptacles
Applications
- Factory automation
- Industrial
- Heavy equipment
- Heavy duty
- Transportation
- Entertainment/Lighting
- Welding
- Special machinery
- Surveillance
- Traffic systems
- HVAC
- I/O modules
