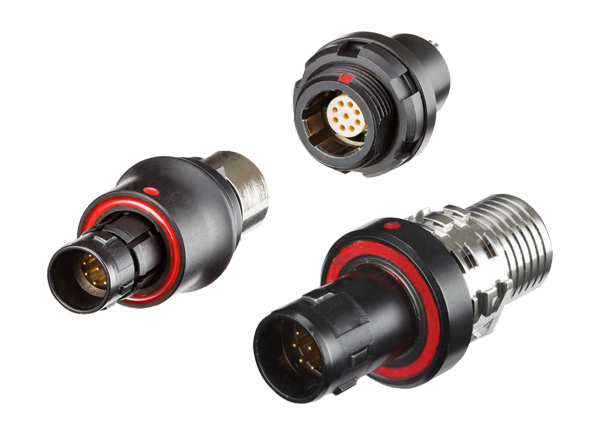

Amphenol LTW Break-Away or Push-Pull FLOS Y Circular Connectors
Amphenol LTW Break-Away or Push-Pull FLOS Y Circular Connectors are an advanced and highly reliable solution with push-pull or break-away locking for military applications. The Amphenol LTW FLOS Y Connectors are lightweight quick disconnect connectors that offer simple mating and locking. The FLOS Y series provides high data transmission up to 10Gbps and 360° shielding. The connectors also provide IP68 protection and operate over a -40°C to +125°C temperature range.
Features
- Quick disconnect
- Lightweight
- Simple mating and locking
- Compact design
- Affordable
- Robust
- Blind mate
- Unmistaken locking and mating state
Applications
- Aircraft
- Software-defined radios
- Military
Specifications
- Up to 26 contacts
- -40°C to +125°C operating temperature range
- ≥5000 cycle service life
- IP68 protection class
- 360° shielded
- Up to 10Gbps data transmission
- Black chromium or ruthenium plating
- Up to 1000 hours corrosion resistance
