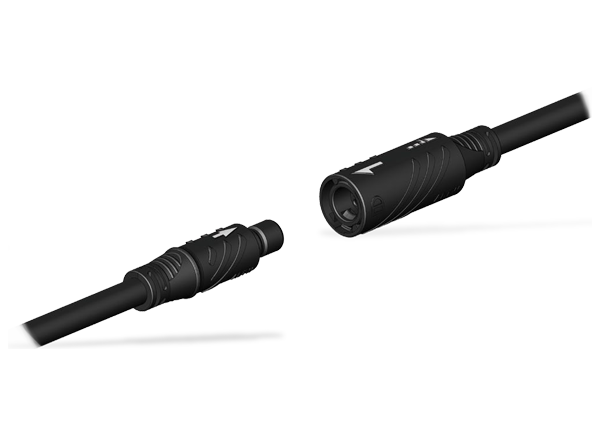

Amphenol LTW HS-Lok Push-Lock Connectors
Amphenol LTW HS-Lok Push-Lock Connectors provide IP68 waterproof protection and UL-f1-rated UV resistance, making them ideal for indoor or outdoor wet locations. HS-Lok features audible feedback and guided key design, ensuring error-proof and easy assembly for blind mating. These Amphenol LTW connectors offer a quick and safe release with low pull force. HS-Lok is UL2238/UL50e compliant and rated up to 5A for low voltage power and data transmissions. The HS-Lok connectors include two to six contact configurations and Hybrid (Power+Data) to suit users' varying requirements.
Features
- Push-lock design
- High waterproof capacity (IP68, 1m/24 hours)
- High tensile strength
- Audible feedback and guided key for blind mating
- Quick-release mechanism
- UL 94V-0 flammability rating
- UV sun resistance
Applications
- LED lighting
- Communication systems
- IP CCTV (closed-circuit TV) and security
- Industrial automation
- Electric Vehicle (EV)
Specifications
- Up to 5A current
- Up to 300VAC/DC voltage rating
- 2000 cycles durability
- IP68 waterproof rating
- -40°C to +105°C operating temperature range
- ULL2238 safety compliance (UL50e, outdoor use)
- 10mΩ maximum contact resistance
- 100MΩ minimum insulation resistance
- 5kgf maximum mating force
- 3kgf maximum unmating force
- 10kgf tensile strength
- Thermoplastic housing
- Gold-plated copper alloy contacts
- Rubber gasket and O-ring
Expanded View
