Amphenol Alden PL-700SM-N Auto-Coupling Pulse-Lok® Connectors

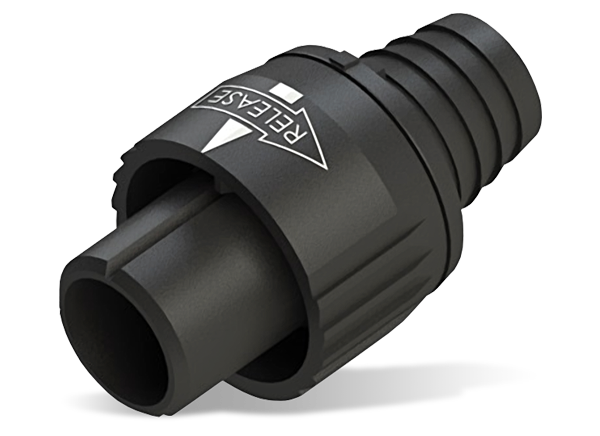

Amphenol Alden PL-700SM-N Auto-Coupling Pulse-Lok® Connectors are plastic shelled connectors with Press and  Seal™ self-sealing contacts and backshell. These connectors feature Pulse-Lok auto-latch and mating confirmation. The PL-700SM-N connectors, offering up to 27 contact positions, withstand a minimum of 5000 mating cycles. These connectors feature thermoplastic connector housings and rubber flex reliefs. The PL-700SM-N connectors are water-proof and operate in a temperature range from -20°C to +105°C. The Amphenol Alden PL-700SM-N Auto-Coupling Pulse-Lok® Connectors withstand steam, gamma, and Ethylene Oxide (EtO) sterilization methods.

Features

  • Pulse-Lok® auto-latch/mating confirmation
  • Miniature ø0.7" circular shell
  • Up to 27 contact positions
  • 16 standard color combinations
  • Multiple and proprietary keying options
  • Available as an overmolded cable assembly
  • Custom configurations available
  • Waterproof (IP-67 rated)
  • Steam, EtO, and gamma sterilizable
  • Chemical resistant housing
  • Up to 5,000 mating cycles with standard contacts
  • Factory terminated and overmolded cable assemblies for enhanced flex and strain relief

Specifications

  • Materials
    • Thermoplastic connector housing
    • Thermoplastic rubber flex reliefs
    • Brass/BeCu contacts
    • Gold-plated sockets and pins per MIL-G-45204
  •  Mechanical
    • 5K maximum mating cycles
    • Retention force
      • 25lbs. minimum mated connectors
      • 35lbs. typical cable-to-connector
      • 45lbs. minimum backshell-to-connector
    • Housing styles
      • In-line plug
      • Front and rear panel-mount receptacle
      • In-line receptacles
  • Electrical
    • 5K minimum mating cycles
    • <2mΩ to <14mΩ contact resistance
    • ø0.5mm to ø2.3mm contact pin size range
    • 16AWG to 12AWG maximum wire gauge range
    • 300VRMS maximum operating voltage
    • 0.5A to 15.0A maximum operating current range
  • Environmental
    • -20°C to +105°C operating temperature range
    • IP67 moisture resistance
    • Gamma, EtO, and autoclave sterilizable
    • Common or cleaning solvent chemical resistance
