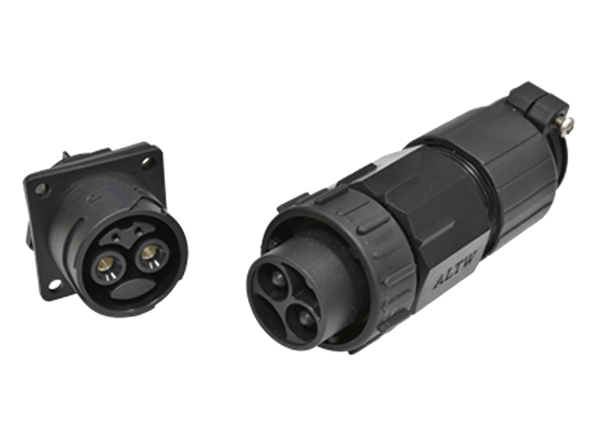

Amphenol LTW Power 50A Connectors

Amphenol LTW Power 50A Connectors offer up to 50A current rating and feature a robust, high-density crown spring terminal design. Amphenol LTW Power 50A hybrid-type connectors offer 2A signal current in addition to 50A power and provide a three-points lock bayonet mating style. The Power 50A series is UV resistant and UL 94V-0 rated. The series also provides IP67 ingress protection when mated and is ideal for use in electric bikes, lighting systems, industrial automation, and broadband wireless access.


  • Robust, high-density terminal design (crown spring terminal)
  • Up to 50A current rating
  • Hybrid type
  • AC / DC applications
  • UL 94V-0 rated material
  • UV resistant
  • Three-points lock bayonet mating style


  • Electric bikes
  • Lighting systems
  • Industrial automation
  • Broadband wireless access


  • Current rating
    • 50A power
    • 2A signal
  • Voltage rating
    • 600VAC / 600VDC power
    • 30VAC / 30VDC signal
  • IP67 (mated) waterproof rating
  • 1000 cycles durability
  • -40°C to +105°C operating temperature range
