Amphenol SGX Sensortech VQ22 Combustible Gas Detector Elements

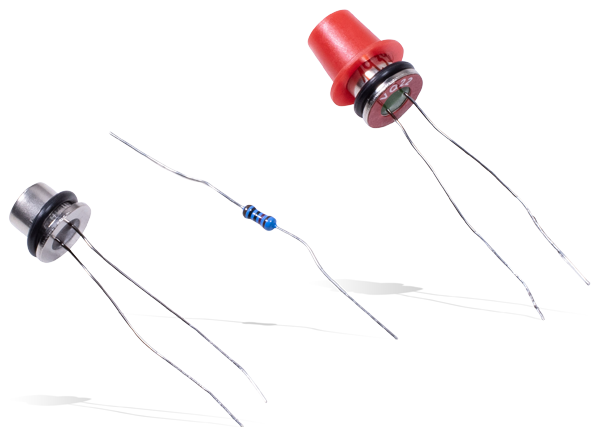

Amphenol SGX Sensortech VQ22 Combustible Gas Detector Elements are improved poison-resistant sensor consisting of two matched elements which are used for the detection of combustible gases, particularly methane in air mixtures in concentrations from 0.1% upwards. The VQ22 Series has no interference from water vapour or carbon dioxide. Using the recommended bridge circuit below and the suggested mounting arrangement, the minimum sensitivity is 10mV/% methane. The VQ22 has been designed for use in atmospheres where traces of silicone and other poisoning agents may be present.
Features
- Detection of combustible gases
- Methane in air mixtures in concentrations from 0.1% and up
- No interference from water vapor or carbon dioxide
- Designed for use in atmospheres where traces of silicone and other poisoning agents may be present
- Bridge power consumption: 0.48W max
- Typical average sensor current: 175mA
Specifications
- 2.0V ±0.1V bridge supply
- 0.45W maximum bridge power consumption
- 175mA typical average sensor current
- 10mV/% minimum methane sensitivity
- 2s response time
View All
Amphenol SGX Sensortech Pellistor VQ Gas Sensors
High-quality, low-power pellistor pair optimized for the detection of combustible gases.
