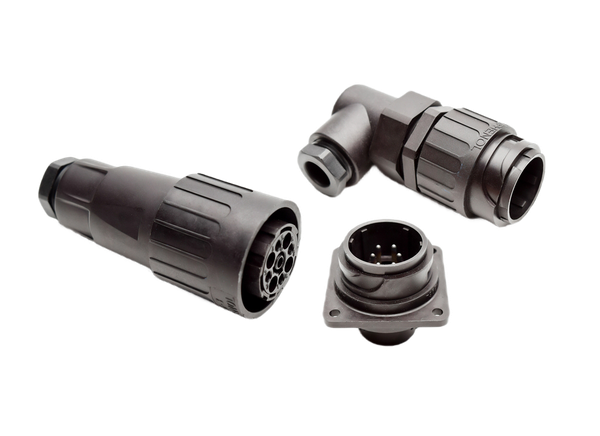

Amphenol-Tuchel ecomate® C16 Circular Connectors
Amphenol-Tuchel ecomate® C16 Circular Connectors are designed for easy operation using reduced dimensions while withstanding harsh conditions. Other features include quick assembly, vibration-safe components with non-sensitive screw locking, and an ergonomic coupling sleeve for better grip and safer handling. Amphenol-Tuchel ecomate C16 Circular Connectors offer a temperature range of -40°C to +100°C and have a UL 94V-0 flammability rating.
Features
- Up to 20 contacts in one connector
- Hybrid inserts for combined power and signal wires
- Protection degree IP65 in mated position
- Wire gauge up to max. 6mm2 / 10AWG
- Encoding without loss of contact position (on angular position of the insert)
- High-quality molded materials per UL 94-V0
- VDE, UL, and CSA approvals
Related Connectors
Amphenol Sine Systems ecomate® Connectors
Rated IP65 to IP69K (in mated condition), ideal for indoor / outdoor industrial applications.
