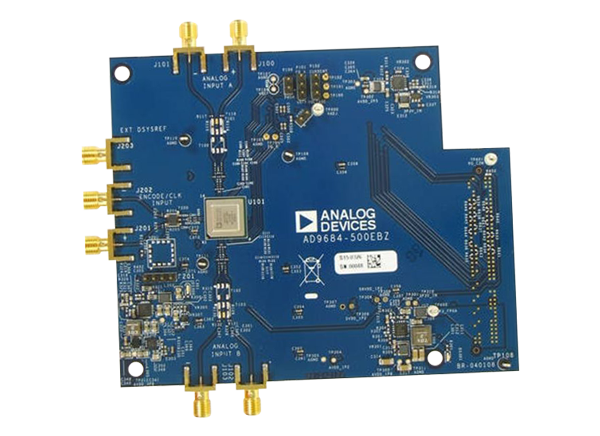

Analog Devices Inc. AD9684-500EBZ Evaluation Board
Analog Devices AD9684-500EBZ Evaluation Board provides all of the support circuitry required to operate the AD9684 14-Bit 500MSPS Dual ADC in its various modes and configurations. The full-featured AD9684-500EBZ Evaluation Board includes the
Features
- Full-featured evaluation board for the AD9684
- SPI interface for setup and control
- Wideband Balun driven input
- No external supply needed. Uses 12V-1A and 3.3V-3A supplies from FMC
- VisualAnalog® and SPI controller software interfaces
Typical Measurement Setup
Related Products
Analog Devices Inc. AD9684 14-Bit 500MSPS Dual ADCs
14-Bit, 500MSPS LVDS, Dual Analog-to-Digital Converters; supports up to 1GHz input frequency.
