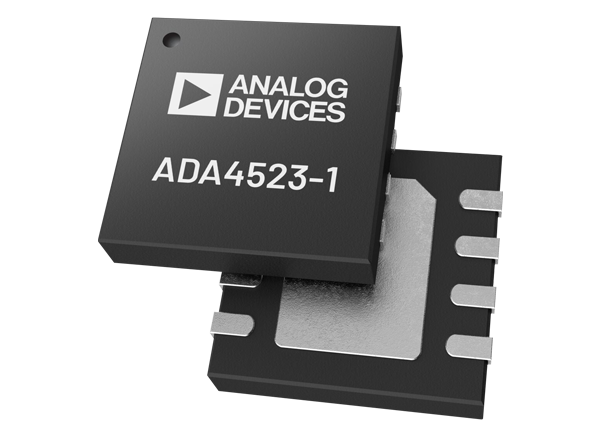

Analog Devices Inc. ADA4523-1 Zero Drift Op Amp features precision DC performance over a wide supply range of 4.5V to 36V. The ADA4523-1 achieves a maximum offset voltage of ±4µV and a 0.1Hz to 10Hz input noise voltage of 88nV p-p typical. The self-calibrating circuitry of the ADA4523-1 results in low offset voltage drift with temperature (0.01 µV/°C maximum) and zero drift over time. The ADA4523-1 also uses on-chip filtering to achieve high immunity to electromagnetic interference (EMI).
Features
- Supply voltage range: 4.5V to 36V
- Offset voltage: ±4µV maximum at 5V
- Offset voltage drift: 0.01µV/°C maximum at 5V
- Input noise
- Voltage: 88nV p-p from 0.1Hz to 10Hz typical
- Spectral density voltage: 4.2nV/√Hz typical at 1kHz
- Rail-to-rail output
- Unity-gain stable
- GBP: 5MHz typical
- Slew rate: 1.8V/µs typical falling
- PSRR: 168 dB typical at VS = 4.5V to 36V
- Open-loop voltage gain: 160 dB typical at VOUT = −14.75V to
- +14.75V, RL = 10kΩ, VS = 30V
- CMRR: 160dB typical at VCM = −15.1V to +13.5V,VS= 30V
- Integrated EMI filters
- Shutdown mode
- Ground sense
- Available in 8-lead SOIC, 8-lead MSOP, and 8-lead LFCSP
Applications
- High-resolution data acquisition
- Reference buffering
- Test and measurement
- Electronic scales
- Thermocouple amplifiers
- Strain gauges
- Low-side current sense
Evaluation Kit
Analog Devices Inc. ADA4523-1 Evaluation Board
Evaluates the ADA4523-1 8-lead, micro small outline package (MSOP) operational amplifier.
