Analog Devices Inc. ADL8111-EVALZ Evaluation Board

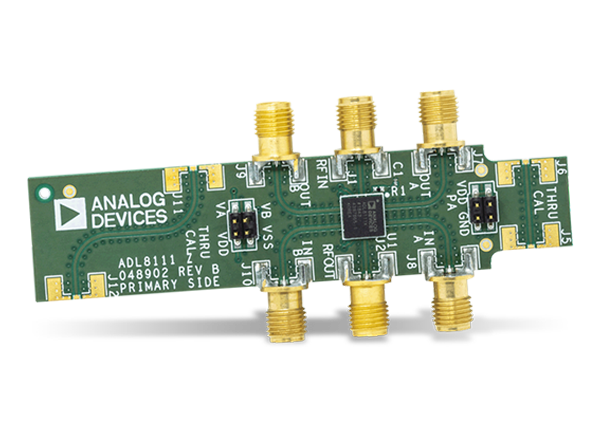

Analog Devices Inc. ADL8111-EVALZ Evaluation Board is designed to evaluate the ADL8111 Amplifiers. The ADL8111 10MHz to 8GHz Bypass Amplifiers integrate quad-throw (SP4T) nonreflective switches, allowing multiple gain and linearity values. The ADL8111-EVALZ Evaluation Board is fully populated with components. The Board features signal lines with a 50Ω characteristic impedance. An adequate number of via holes connect the top and bottom ground planes.
Associated Products
Analog Devices Inc. ADL8111 10MHz to 8GHz Bypass Amplifiers
Integrates quad-throw (SP4T) nonreflective switches allowing multiple gain and linearity values.
Front & Back Layout
PCB Layout
Schematic
