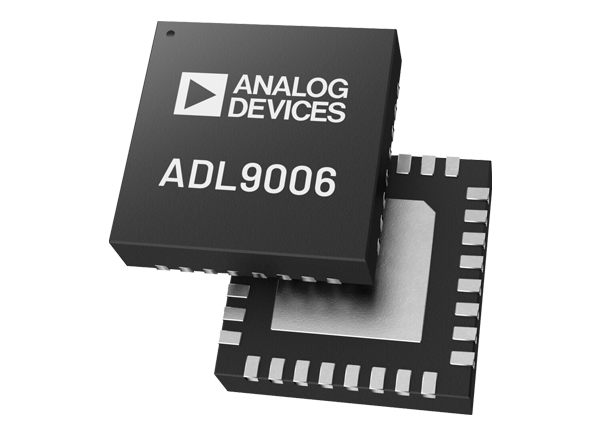

Analog Devices Inc. ADL9006 Self-Biased LNA (2-28GHz)
Analog Devices ADL9006 Self-Biased LNA (2-28GHz) is a gallium arsenide (GaAs), pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC) low noise amplifier. The amplifier operates between 2GHz and 28GHz. The amplifier provides 15.5dB of gain, 2.5dB noise figure, 26dBm output third-order intercept (OIP3), and 20dBm of output power for 1dB compression (P1dB) while requiring 53mA from a 5V supply. The Analog Devices ADL9006 is self-biased, with only a single positive supply needed to achieve a supply current (IDD) of 53mA.
Features
- 20dBm typical at 2GHz to 6GHz P1dB
- 20.5dBm typical at 2GHz to 6GHz PSAT
- 15.5dB typical at 6GHz to 28GHz gain
- 2.5dB typical at 2GHz to 20GHz noise figure
- 26dBm typical at 2GHz to 6GHz OIP3
- 5V at 53mA supply voltage
- 50Ω matched input and output
- 5mm x 5mm x 1.25mm LFCSP32 package
Applications
- Test instrumentation
- Military and space
- Local oscillator driver amp
Functional Block Diagram
Noise Figure vs. Frequency at Various Temperatures
Gain & Return Loss vs. Frequency
Typical Application Circuit
Related Development Tool
Analog Devices Inc. ADL9006-EVALZ Amplifier Evaluation Board
2-layer PCB for evaluation of the ADL9006, a GaAs pHEMT MMIC Low Noise Amplifier.
