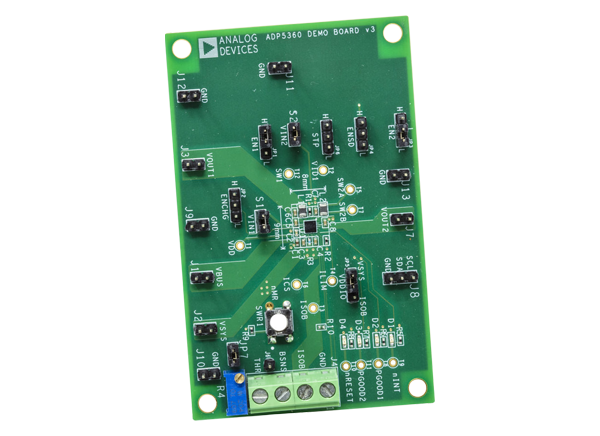

Analog Devices Inc. ADP5360CB-EVALZ PMIC Evaluation Board

Analog Devices Inc. ADP5360CB-EVALZ Evaluation Board is designed to help evaluate the features and performance of the ADP5360, a battery management PMIC. The evaluation board supports an external USB dongle connection. It includes a graphic user interface (GUI) software that allows the user to evaluate the comprehensive functionalities provided by the I2C interface.


  • 4.0V to 6.5V VBUS input voltage
  • Fully featured evaluation board for the ADP5360
  • Evaluation software and installation CD included
  • Simple device measurements and demonstrable with
    • A voltage power supply
    • A battery or battery simulator
    • A voltage meter
    • Load resistors or an electrical load

Required Equipment

  • USB to I2C dongle USB-SDP-CABLEZ (not included in the evaluation kit and must be ordered separately)
  • Li-ion battery or battery simulator PC running Windows® 10 operating system
  • ADP5360 datasheet
  • ADP5360 GUI tool software
