Analog Devices Inc. DC2535A Demo Board for LT8653S

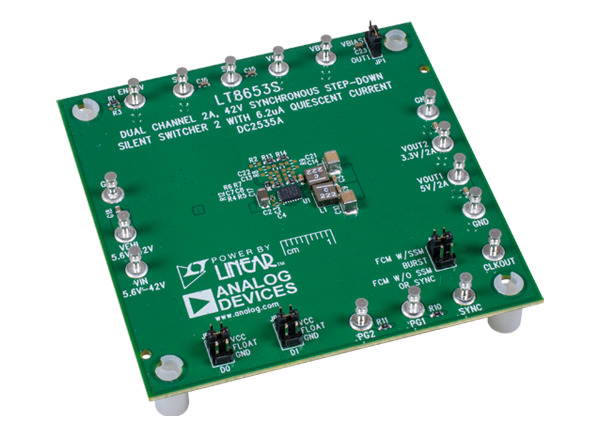

Analog Devices Inc. DC2535A Demo Board for LT8653S is a 42V, dual-channel, and 2A synchronous step-down regulator. The LT8653S is a compact, high efficiency, and high speed synchronous monolithic step-down switching regulator. This switching regulator features the second generation Silent Switcher® technology that minimizes EMI and reduces PCB layout sensitivity. The DC2535A demo board is designed for two outputs 5V and 3.3V, each output can source up to 2A continuous current at the same time. The board offers ultralow quiescent current in Burst Mode® operation that achieves high efficiency at very light loads.
The DC2535A demo board operates at 2MHz switching frequency by default to minimize solution size. This demo board comes in 3x3 inches size and has four layers with 2oz copper on the outer layers and 1oz copper on the inner layers.
Features
- LT8653S high-speed synchronous monolithic step-down switching regulator
- 5.5V to 42V output voltage range
- 6.2µA ultra-low quiescent current in Burst Mode® operation
- 3x3 inches board size
- 2MHz switching frequency
Performance Graph
Related Product
Analog Devices Inc. LT8653S Dual Step-Down Regulators
Deliver up to 2A of continuous current from both channels and supports loads up to 3A.
Analog Devices Inc. Silent Switcher® Solutions for EMI Compliance
Delivers up to 95% efficiency at 2MHz & ultra-low EMI/EMC emissions.
