Analog Devices Inc. EVAL-ADCM Evaluation Kit
Analog Devices Inc. EVAL-ADCM Evaluation Kit is a demonstration and development platform based on the ADcmXL3021 3-Axis Vibration Sensing Module. The EVAL-ADCM Evaluation Kit includes a ADcmXL3021 Sensor Module, a Breakout Board, an ADcmXL Interface Board, a Infineon Technologies EZ-USB™ FX3™ Board, and the cables to connect them together. The EZ-USB FX3 Board allows connection to a PC enabling users to access evaluation software for effortless configuration of the module, register setup, data display, and data logging.
Features
- Enables evaluation of the ADcmXL3021 3-Axis Vibration Sensing Module
- Connects to PC for access to Graphics User Interface (GUI)
- Evaluation software enables effortless configuration of the module, register setup, data display, and data logging
- High-speed SPI to USB adaptor for high data rate Real Time Streaming (RTS)
Kit Contents

- ADcmXL3021 Module

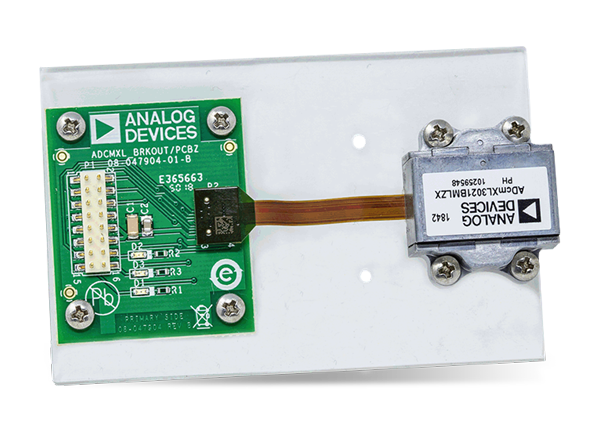

- ADCMXL_BRKOUT/PCBZ Breakout Board
- ADcmXL FX3 Interface Board
- Infineon Technologies EZ-USB™ FX3 Board (CYUSB3KIT-003)
- Acrylic mounting plate (2" x 3")
- 8x Mounting Screws
- 2" Ribbon Cable, 16-pin conductor, 2mm connector pitch (required for RTS Mode communications link)
- 12" Ribbon Cable, 16-pin conductor, 2mm connector pitch

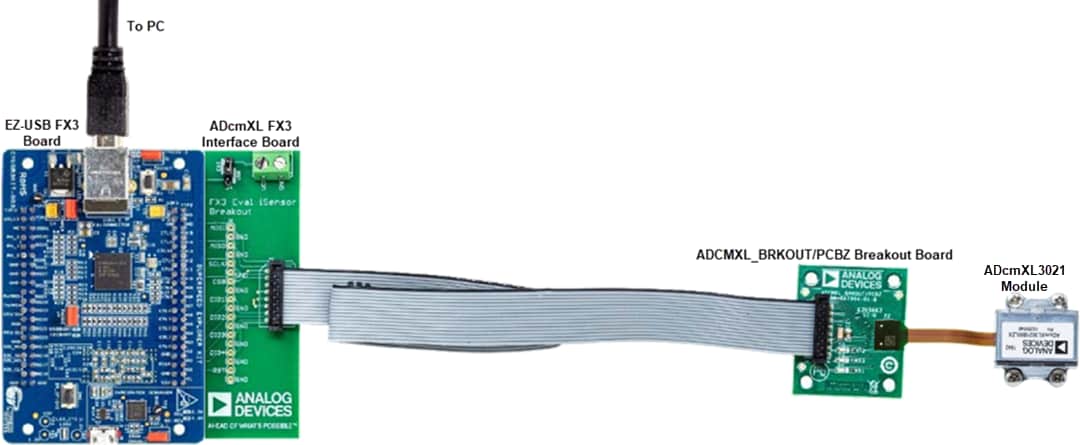

Setup Example
