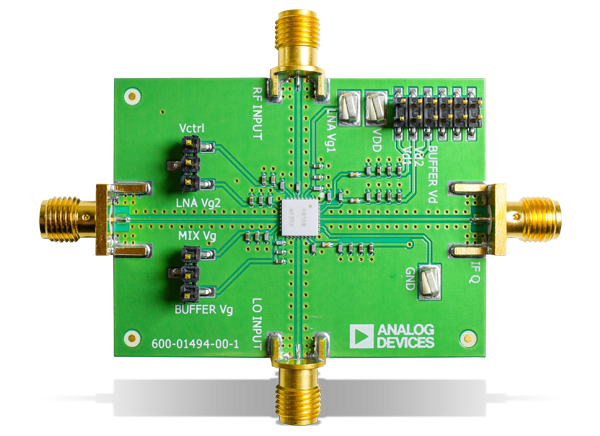

Analog Devices Inc. Evaluation Board for HMC8108 Low Noise Converter helps designers evaluate the features of the 9GHz to 10GHz HMC8108 Low Noise Converter. Developed using RF circuit design techniques, the board provides a sufficient number of via holes to connect the top and bottom ground planes. Signal lines with 50Ω impedance connect the package ground leads and exposed pad directly to the ground plane.
Analog Devices Inc. HMC8108 Low Noise Converter
Compact 9GHz to 10GHz, X-Band, GaAs, MMIC, low noise converter with a typical 13dB conversion gain.
