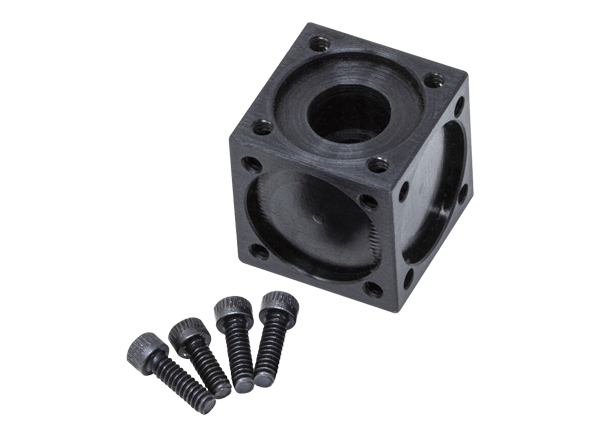

Analog Devices Inc. EVAL-XLMOUNT1 Mounting Block provides a mechanically optimized mounting block for accelerometer breakout boards. The aluminum EVAL-XLMOUNT1 can be used to secure an accelerometer to any source acceleration, such as a shaker table, while providing optimized mechanical characteristics for evaluating the sensor frequency response and other characteristics. The EVAL-XLMOUNT1 Mounting Block provides a ±1.5dB flat response up to 20kHz. The accelerometer breakout board can be attached to the mounting block in multiple orientations along the 5 different faces of the block.
Mechanically controlled evaluation of accelerometers
Resonance optimized up to 20kHz
4x 4-40 screws for mounting accelerometer board
Supported Accelerometer Boards
Analog Devices Inc. CN0533 Circuit Evaluation Board (EVAL-CN0533-EBZ)
Reference design for a vibration sensing solution based on the ADXL1002 MEMS Accelerometer.
