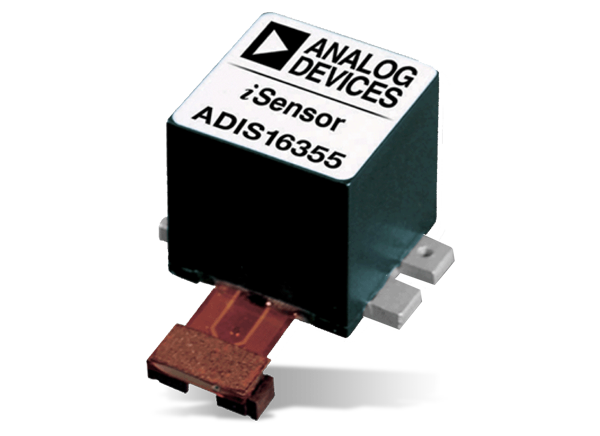

Analog Devices Inc. iSensor MEMS Inertial Measurement Units

Analog Devices iSensor® MEMS inertial measurement unit (IMU) sensors are designed using multi-axis combinations of precision gyroscopes, accelerometers, magnetometers, and pressure sensors. ADI's technology reliably detects and processes multiple degrees of freedom in highly complex applications under dynamic conditions. Offered as plug-and-play solutions, the iSensor MEMS IMU sensors provide full factory calibration, embedded compensation & sensor processing, and a simple programmable interface.

Features

Tri-axis digital gyroscope with digital range scaling
<0.05° tight orthogonal alignment
±1.7g to ±18g tri-axis digital accelerometer
Autonomous operation and data collection
No external configuration commands required
180-500ms start-up time
4ms sleep mode recovery time
Factory-calibrated sensitivity, bias, and axial alignment
−20°C to +88°C calibration temperature range
SPI-compatible serial interface
Embedded temperature sensor
Enable external sample clock input up to 1.2kHz

Programmable operation and control
- Automatic and manual bias correction controls
- Bartlett window FIR filter length, number of taps
- Data ready, alarm indicator, general-purpose digital I/O
- Alarms for condition monitoring
- Sleep mode for power management
DAC output voltage
Single-command self-test
4.75V to 5.25V single-supply operation
2000g shock survivability
−40°C to +105°C operating temperature range
