Analog Devices / Maxim Integrated MAX20011CEVKIT Converter Evaluation Kit

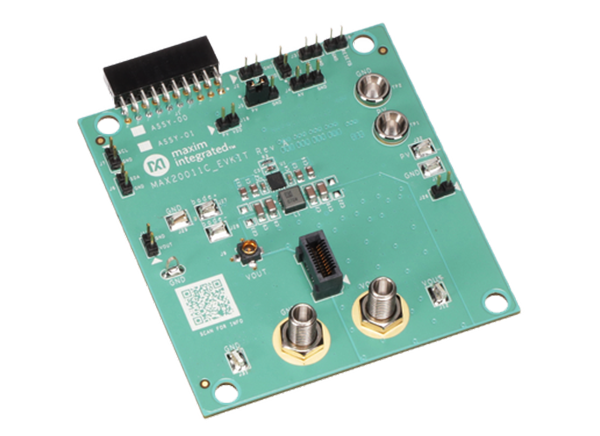

Analog Devices MAX20011CEVKIT Converter Evaluation Kit is a fully assembled and tested PCB intended to demonstrate the capability of the MAX20011C step-down (buck) voltage regulator. The Analog Devices MAX20011C has an output current rating of 16A. The IC operates at 3V to 5.5V input supply voltage and can regulate a voltage range of 0.5V to 1.275V.
The device features a 2.2MHz fixed-frequency PWM mode for better noise immunity and load-transient response. The 2.2MHz frequency operation allows for the use of all-ceramic capacitors and minimizes external components. The programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low RDS(ON) switches improve efficiency at heavy loads and make the layout a much simpler task for discrete solutions.
The I2C interface supports dynamic voltage adjustment with programmable slew rates. Other features include programmable soft-start, overcurrent, and overtemperature protection. The Analog Devices MAX20011CEVKIT comes pre-tested for immediate evaluation.
Features
- High-efficiency DC-DC converter
- Up to 16A peak output current
- 3V to 5.5V input supply voltage
- I2C user configurable
- Excellent load transient performance
- 2.2MHz or 1.1MHz operation
- Test points for bode plot measurement
- Proven PCB layout
- Fully assembled and tested
Related Product
Analog Devices / Maxim Integrated MAX20011x Step-Down Converters
Operates with a 3.0V to 5.5V input voltage range and supply a 0.5V to 1.275V output voltage range.
