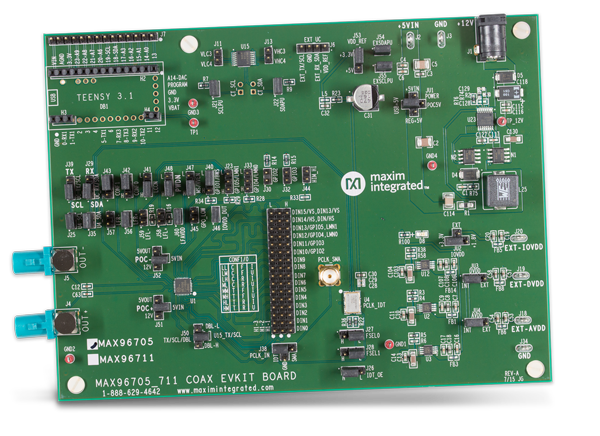

Analog Devices MAX96705COAXEVKIT and MAX96711COAXEVKIT Evaluation Kits provide a proven design used to evaluate the MAX96705 and MAX96711. The MAX96705 and MAX96711 are high-bandwidth gigabit multimedia serial link (GMSL) serializers. These kits come with a spread spectrum and full-duplex control channel through the use of a standard FAKRA coax or STP cable. The Analog Devices MAX96705COAXEVKIT and MAX96711COAXEVKIT Evaluation Kits also include Windows-compatible software with a simple graphical user interface (GUI) for exercising features of the device. Each Evaluation Kit consists of a pre-installed MAX96705 or MAX96711 device.
Accepts 16-bit parallel input data and outputs gmsl serial data through FAKRA connectors
Microsoft Windows compatible software
USB-controlled interface (cable included)
Proven PCB layout
Fully assembled and tested
MAX96705 or MAX96711 Serializer EV Kit
MAX96706 or MAX96708 Deserializer EV Kit
2m FAKRA cable assembly (included with the deserializer EV kit)
>20MHz function generator
PC with Microsoft Windows and an available USB port
5V DC, 500mA power supply
Analog Devices / Maxim Integrated MAX96705 16-Bit GMSL Serializer
Compact serializer with features especially suited for automotive camera applications.
