Apex Microtechnology SA50 Complete H-Bridge PWM Amplifiers

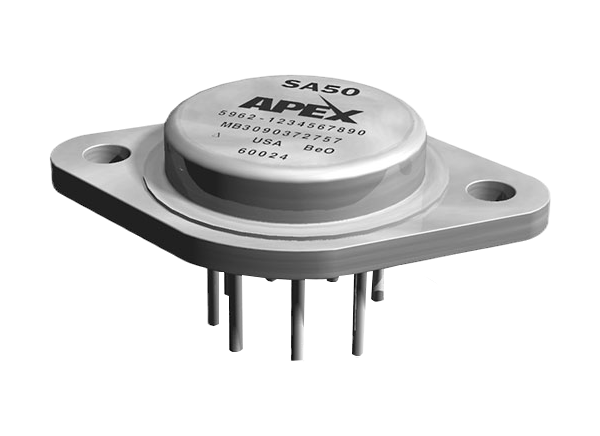

Apex Microtechnology SA50 Complete H-Bridge PWM Amplifiers are low-cost, 5A, 80V pulse width modulation (PWM) amplifier, housed in an 8-pin TO-3 isolated metal package. The SA50 can be directly connected to a heatsink. The device's drive and control circuitry for low- and high-side switches are internal. The PWM circuitry is also internal. Only an analog signal for determining speed and direction in brush-type motor drive applications or audio signal for switchmode audio amplification is needed.
Features
- Up to 80V voltage supply operation
- 5A continuous high output current
- Low-cost complete H-bridge
- Self-contained smart low- or high-side drive circuitry
- Up to 80V voltage supply operation
- 97% typical high efficiency
- Four quadrant operation, torque control capability
- Internal PWM generation
Applications
- Brush type motor control
- Class D switchmode amplifier
- Reactive loads
- Magnetic coils (MRI)
- Active magnetic bearing
- Vibration cancelling
Videos
Block Diagram
