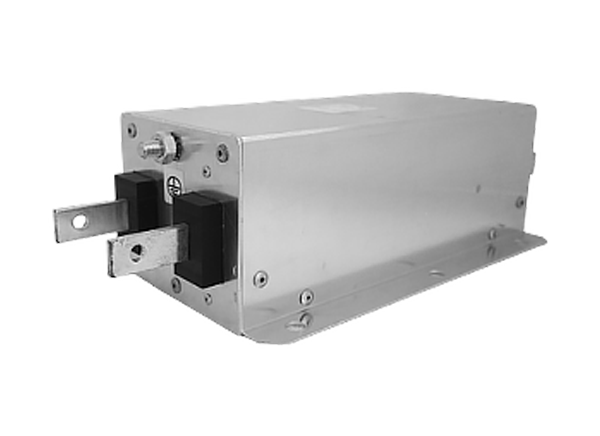

Astrodyne TDI RP692 High Voltage/Current DC Filters
Astrodyne TDI RP692 High Voltage/Current DC Filters are power line filters available from 25A to 2500A current ratings. The RP692 chassis mount filters provide 1200VDC (maximum) operating voltage within a -25°C to +60°C ambient temperature range. These power line filters are RoHS compliant and suitable for inverter applications.
Specifications
- 1200VDC maximum operating voltage
- 4700VDC Hipot rating
- 30dB to 75dB typical insertion loss range
- -25°C to +60°C ambient temperature range
- 25/100/21 climatic category
- 25A to 2500A current range
- 100nF to 2000nF capacitance
Schematic Diagram
