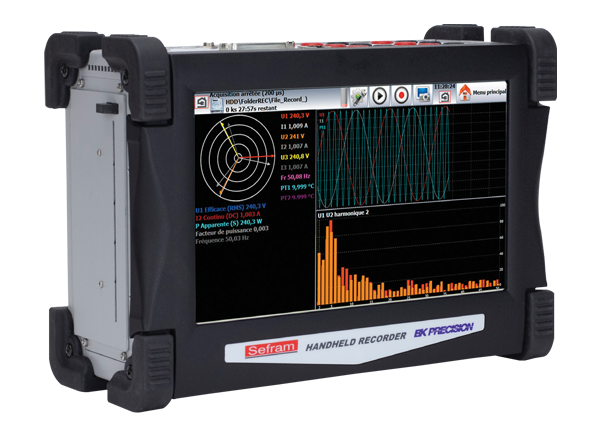

B&K Precision DAS 30/50/60 High-speed Multi-function Recorders

B&K Precision DAS 30/50/60 High-speed Multi-function Recorders are available with a large internal solid-state memory (up to 64GB) and 9.5 hours of battery life. The recorders feature versatile channel configurability, high-speed sampling (1MSa/s), and a wide input range (±5mv to ±500V). The units are available with 2, 4, or 6 universal analog channels. Using a common time base, each channel can record a different signal including voltage, temperature, current, or frequency. When combined with a CAT III isolation rating, the recorders can be used for small sensor signal logging and electrical power analysis applications. B&K Precision DAS 30/50/60 High-speed Multi-function Recorders applications include measuring signals ranging from small sensors to large electrical systems, maintenance and failure analysis, and power analysis of single and three-phase systems.

Features

Fast 1MSa/s sample rate (memory mode) and 100kHz bandwidth for capturing intermittent events
Accurately view and record signals from ±5mV to ±500 and 424V_RMS
CAT III 600V rated isolated channels
10" wide touchscreen TFT display
Capture mixed signals with one instrument, such as high voltage, current waveforms, temperature, and logic data
Up to 9.5 hours of battery life
64GB (DAS60) and 32GB (DAS30/50) internal solid-state memory

2, 4, or 6 analog input channels
14-bit resolution
16 logic input channels
Temperature measurements supporting thermocouples and Pt100/Pt1000 sensors (factory option on DAS30/50)
Wi-Fi® monitoring and control (standard USB Wi-Fi dongle required)
2 USB host ports and one LAN interface
110mm thermal printer (factory option)
