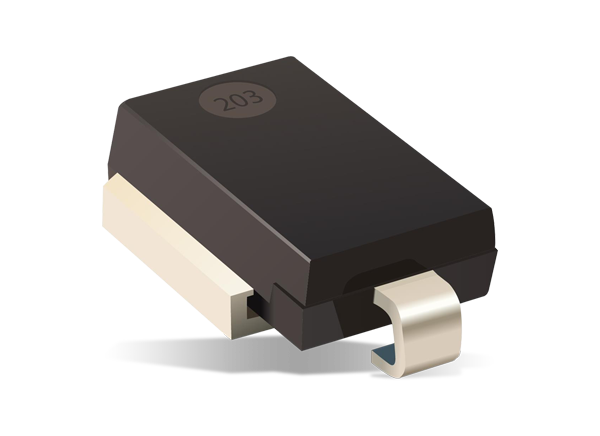

Bourns 15KPA-SD-Q TVS Diodes
Bourns 15KPA-SD-Q AEC-Q101-Compliant TVS Diodes are designed for use in DC bus clamping applications. The series is also ideal for the protection of sensitive electronic components against overvoltage transients. Bourns 15KPA-SD-Q TVS Diodes offer superior performance with a high peak pulse power (10/1000μs) rating of 15kW and a high peak pulse current (8/20μs) rating of 1kA. These diodes also achieve lower clamping voltage under surge, better performance stability, and increased reliability compared to competing MOV technology.
Features
- Unidirectional or bidirectional
- 15kW maximum peak pulse power (10/100μs)
- 1kA maximum peak pulse current (8/20μs)
- 16V to 66V standoff voltage
- RoHS compliant and halogen-free
- AEC-Q101 compliant
Applications
- High peak power applications
- High-temperature applications
- Clamping diodes
- Automotive
- Load switching and lighting
Dimensions
