Bourns CDDFN10-3324P Surface-Mount TVS Diode Array

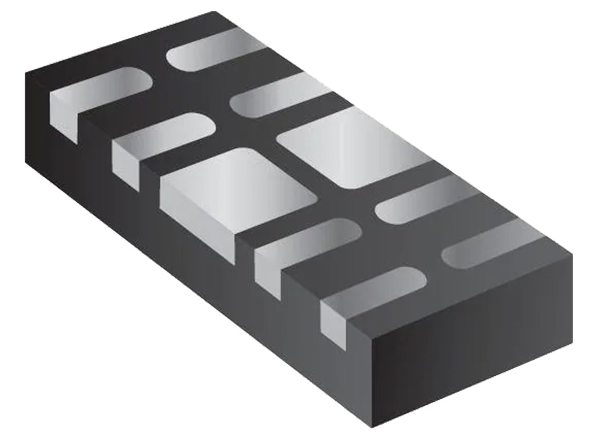

Bourns CDDFN10-3324P Surface-Mount TVS Diode Array is designed for high-speed communication port applications. This device is housed in a DFN-10 package and combines a 3.3V TVS diode with eight steering diodes to provide ESD protection to IEC 61000-4-2 (Level 4) for four high-speed data lines. Bourns CDDFN10-3324P TVS Diode array has an ultra-low capacitance of 0.04pF between input/output lines.
Features
- RoHS compliant
- Low capacitance - 0.04pF (I/O to I/O)
- ESD protection to IEC 61000-4-2 (Level 4)
Applications
- HDMI 1.3, 1.4, and 2.0
- DisplayPort
- Digital Visual Interface (DVI)
- SATA and eSATA
- USB 3.0
- Memory protection
- SIM card ports
Circuit Diagram
