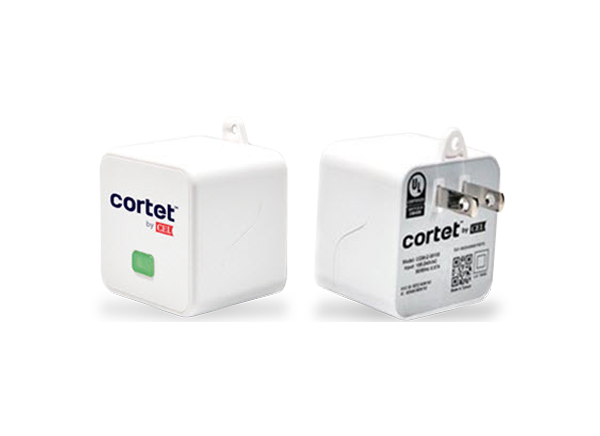

CEL Cortet Z10 Range Extender

California Eastern Laboratories (CEL) Cortet™ Z10 Range Extender provides a simple, reliable, and secure way to extend the range and capacity of a ZigBee® network. The plug-and-play design and built-in software make it easy to set up the Z10 extender and commission it into a ZigBee network. The device acts as a relay for ZigBee messages between ZigBee devices that would otherwise be out of range. The Cortet Z10 Range Extender can also be used to increase the total number of ZigBee devices that a ZigBee coordinator can control. Ideal applications for CEL Cortet Z10 Range Extender include wireless sensor network (WSN), machine-to-machine (M2M), and Internet of Things (IoT).


  • HA 1.2 compliant repeater and range extender for Zigbee networks
  • Increases number of ZigBee devices a ZigBee coordinator can control
  • Plug-and-play design
  • Built-in software
  • Ideal for large facilities or facilities with a poor RF environment
  • Compact module plugs into any AC outlet
  • EZ Mode Commissioning for easy device pairing
  • REACH and RoHS compliant


  • WSN
  • M2M
  • IoT


  • 100VAC to 240VAC input voltage, 50Hz to 60Hz
  • 0.07A maximum current drain
  • IEC Type-A AC input, ungrounded, non-polarized
  • -20°C to +40°C operating temperature range
