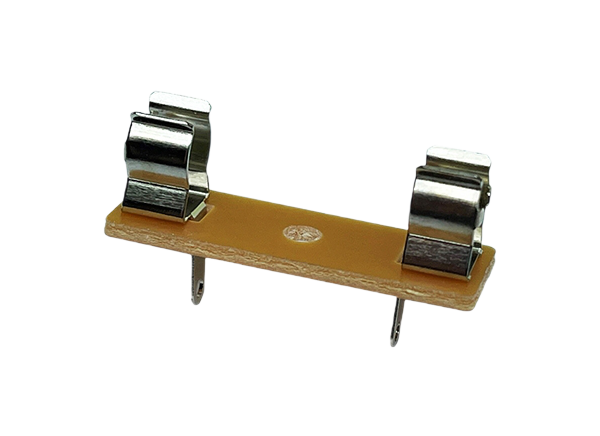

Eaton S-4000 Series Fuse Holders

Eaton S-4000 Series Fuse Holders feature quick connect termination style and 1/4” x 1-1/4” fuse block. These fuse holders come with panel style mounting, 1 pole, and available in black color. The S-4000 fuse holders offer a 25A current rating and a 250VAC voltage rating.


  • 1/4” x 1-1/4” fuse block type
  • Panel style mounting
  • 1 pole
  • Quick connect termination style
  • 25A current rating
  • 250VAC voltage rating

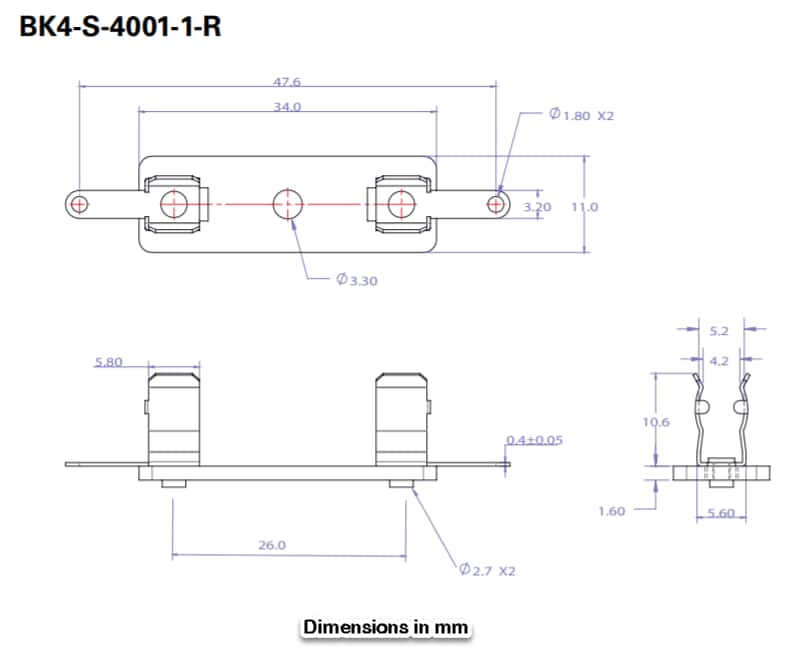

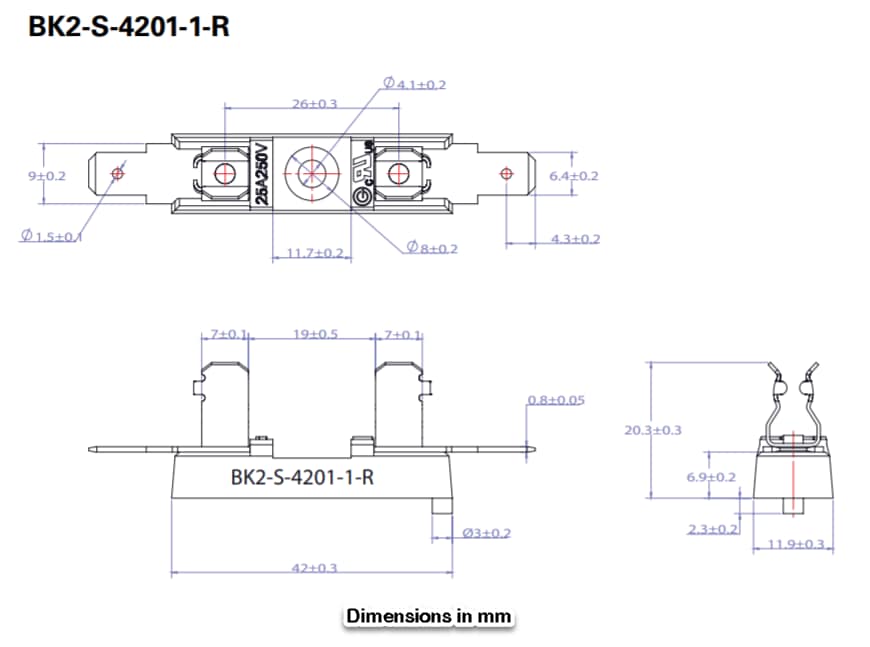

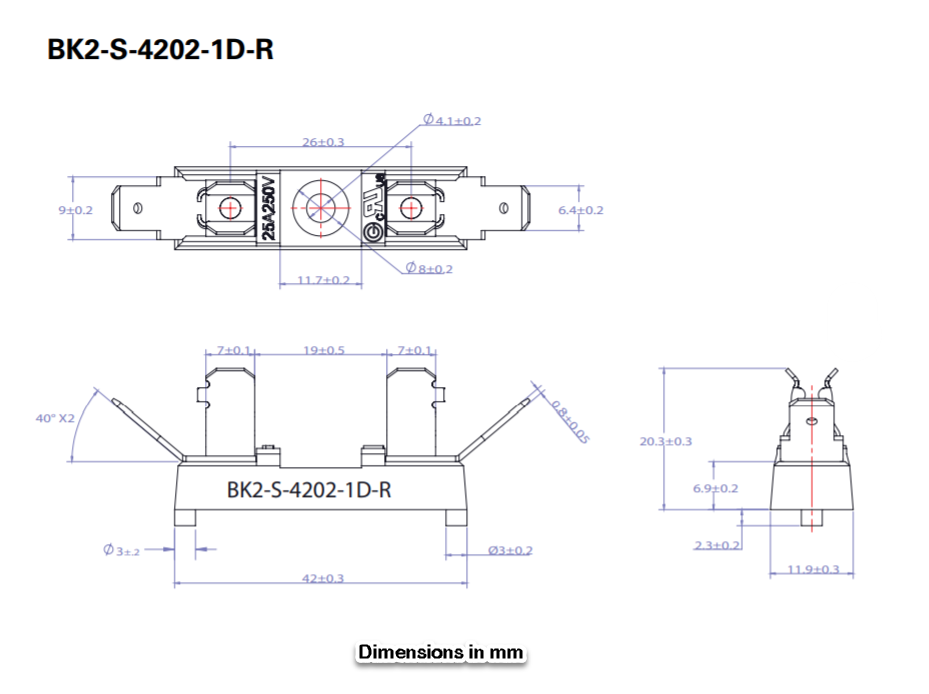

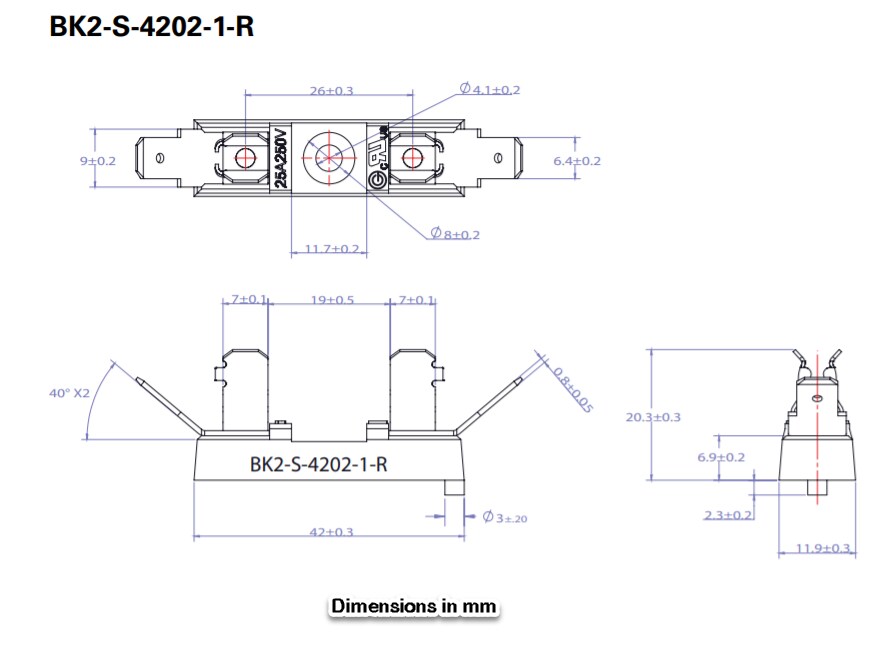

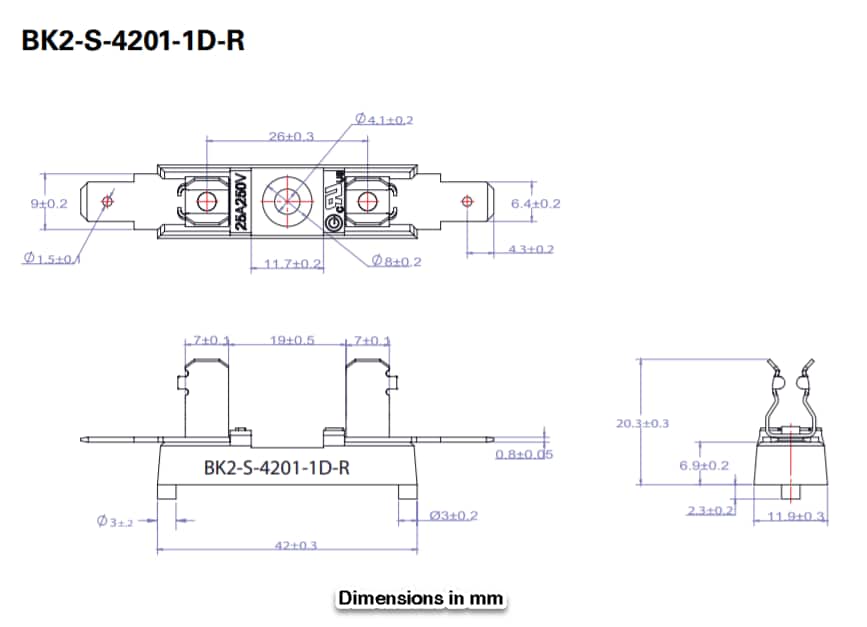

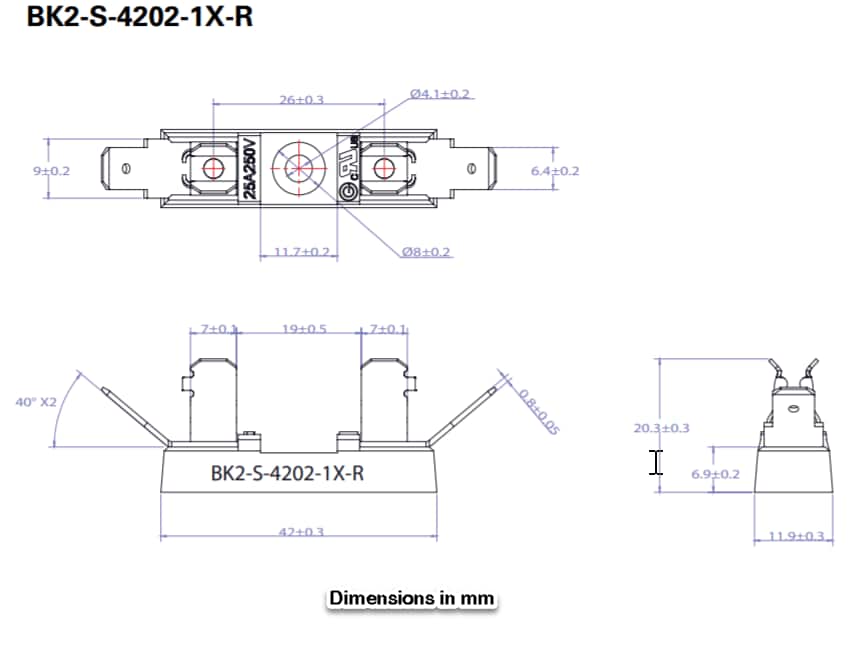

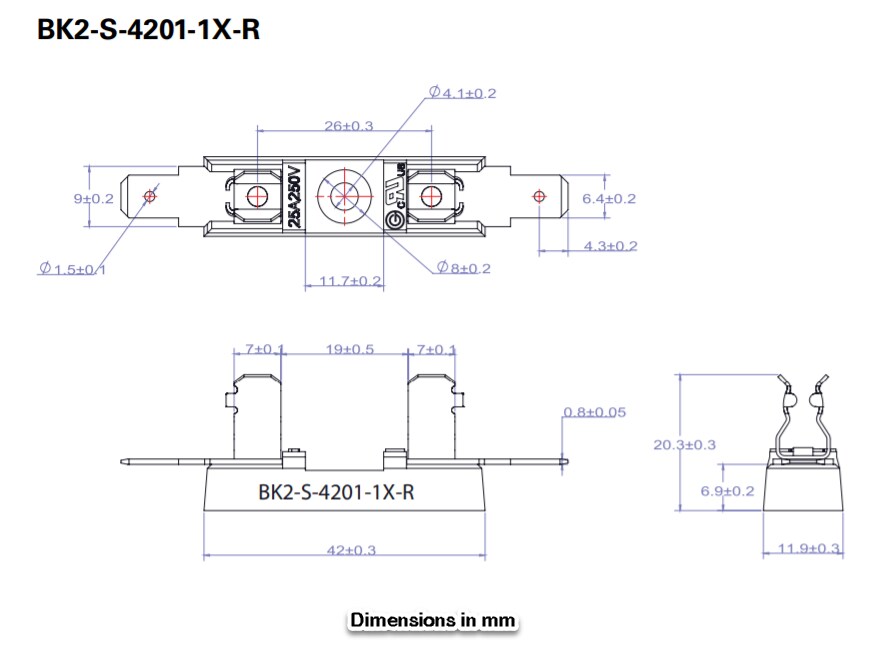

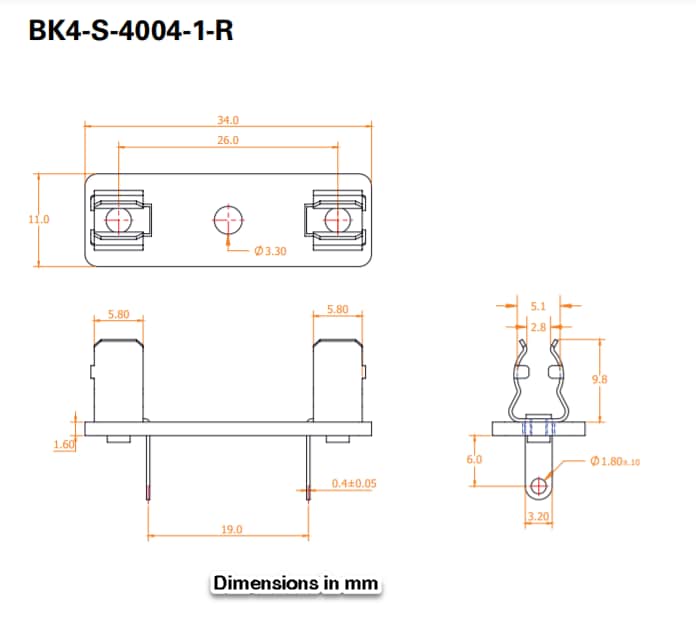

Mechanical Drawings
