KYOCERA AVX 24-9159 Wire-to-Board IDC Sockets

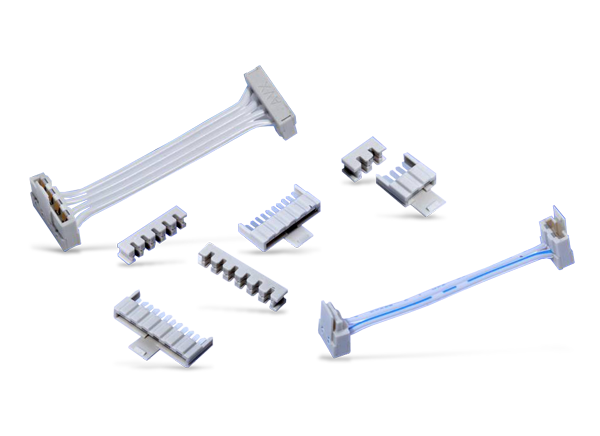

KYOCERA AVX 24-9159 Wire-to-Board IDC Sockets allow 24AWG to 22AWG discrete or cabled wires to be easily and reliably terminated into a 9159 standard interface plug connector. The connectors provide maximum flexibility to bring power and signal wires onto or off any board-level 9159 connectors while providing positive latching. The components mate with standard 9159 horizontal plugs keeping the same BTB connector system. The KYOCERA AVX 14-9159 sockets feature a gold-plated BeCu contact system for high reliability in harsh environments. The wire assembly support block allows for 2 through 6 wires to be terminated in one step with any standard benchtop press. IDC covers provide both through (daisy-chain applications) and wire stop termination options.
Features
- Mates with standard 9159 horizontal plugs, keeping the same BTB connector system
- Integrally molded latch offers positive latching after mating
- 2 to 6 positions, single row with a 3mm pitch
- 24AWG to 22AWG stranded wires
- Gold-plated BeCu contact system for high reliability in harsh environments
- Cost-effective, reliable IDC wire termination
- RoHS compliant
Applications
- Provides wire-to-board capabilities to standard 9159 2-piece connector system
- Provides maximum flexibility to bring power and signal wires onto or off of any board-level 9159 connector, in conjunction with the IDC socket WTB connector (14-9159)
Specifications
- 5A current rating per contact
- 125VAC rating
- -40°C to +125°C operating temperature range
- 10 cycle durability
- UL 94V-0 Nylon insulator material
- BeCu/Phosphor Bronze contacts
- Gold/Tin over Nickel plating
