KYOCERA AVX 9286-300 Thru Wire Poke-Home Wire-to-Wire Connectors are designed to address heavy industrial wire gauge ranges of 18AWG to 12AWG. These connectors employ a single, phosphor-bronze contact technology with a center wire stop. The 9286-300 connectors feature a one-piece contact with high-force contact beams, integral wire stop, and poke-home wire insertion with twist-and-pull wire extraction. KYOCERA AVX 9286-300 connectors have a 600V voltage rating and operate from -40ºC to +105ºC temperature range. Typical applications include smart grids, motors, drives, pumps, solenoids, and commercial building controls.
Simple strip and poke-home wire insertion with twist-and-pull wire extraction
One-piece contact with high-force contact beams provide mechanical stability and wire retention
Integral wires stop prevents over-insertion
Initial -316 product will accept both 16AWG and 18AWG solid and stranded wires
16AWG/18AWG 10A current rating
600V voltage rating
-40ºC to +105ºC operating temperature range
Phosphor bronze contact material
Pure tin over nickel plating
5 cycles of durability
Industrial Machine Control

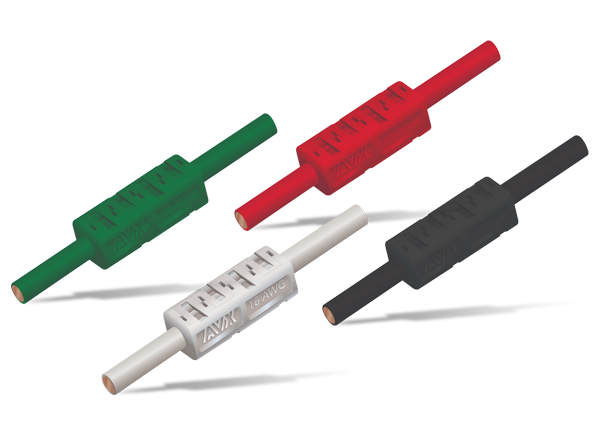

KYOCERA AVX 9286 Wire-to-Wire Poke Home Connectors
Provides flexibility & ease of use in industrial wiring applications, measures 4mm x 16mm (H x L).
