Melexis DVK Conventional Hall Core Development Kit

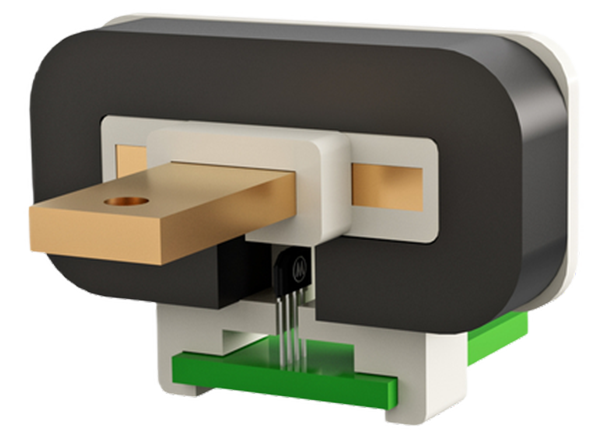

Melexis DVK Conventional Hall Core Development Kit evaluates the performance of MLX91209, MLX91211, MLX91217, and MLX91219 conventional Hall current sensor ICs. This plug-and-play development kit includes everything from copper bus bars to sensors and cores. This kit provides an extra PCB to connect any other variant and has a measurement range of up to 500A with the smallest core and up to 1200A with the biggest core. Melexis DVK Conventional Hall Core Development Kit comes in a SOIC8 package and offers a short response time and a wideband range from DC to 400kHz.
Features
- Plug-and-play (all included from copper bar to sensor)
- Extra PCB to connect any other variant
- Build and test different configurations (core, sensors, sensitivity)
- Short response time
- Ground layer and decoupling capacitors for high EMC performance
- High-speed current sensor (programmable)
- Linear transfer characteristic (programmable)
Kit Contents
- Evaluation board provided with MLX91209LVA-CAR-000, MLX91211LUA-ABT-500, and MLX91219LVA-AAR-502 for a quick start
- Two evaluation boards with no IC to be customized with the reference needed
- Additional spare sensors
- SiFe ferromagnetic cores
- Copper bars
- Plastic holders in order to easily assemble all the possible configurations
Additional Resources
Associated Products
Melexis DVK IMC Hall Shield Development Kit
Evaluates the performance of the MLX91208, MLX91216, and MLX91218 IMC-Hall® current sensor ICs.
