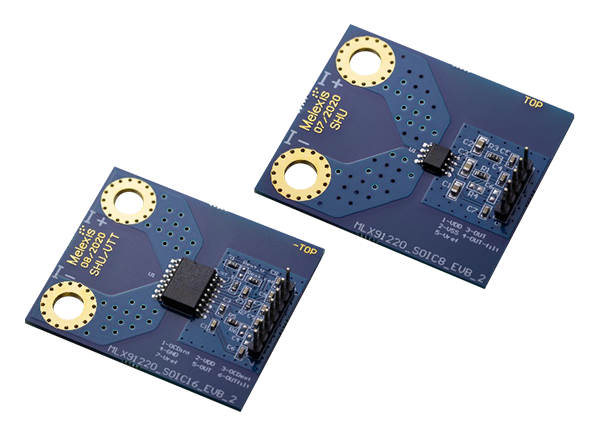

Melexis DVK91220 Current Sensor Development Kits provide all the needed components to evaluate the performance and functionality of the MLX91220 and MLX91221 integrated current sensors. The DVK91220 kits offer variants for SOIC8 or SOIC16 package versions. The Development Kits include a ready-to-use evaluation board provided with MLX91220KDC-ABF-050 for a quick start and a customizable evaluation board with no IC.
DVK variants available for SOIC8 or SOIC16 package versions, provided with an extra PCB to connect any other variant
Isolated current measurement demonstrator factory calibrated for 50A
5V working supply
4.8kVRMS voltage isolation for SOIC-16 device, 2.4kVRMS for SOIC-8 device
Stray field immune due to a differential measurement
<3µs response time
PCB adapted to high current measurements up to 35ARMS continuous
Ground Layer and decoupling capacitors for high EMC performances
Placeholder for output filter implementation
M3 holes for screw-on connection of cables on the primary side
Pin headers on the secondary side
