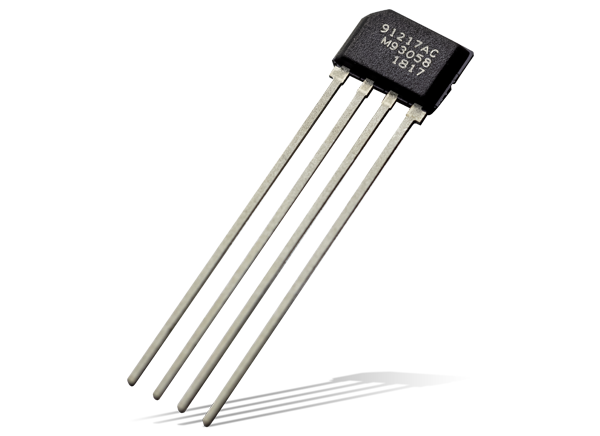

Melexis MLX91217 Conventional Hall Current Sensors are designed with Trim&Form options to facilitate sensor integration in the air gap of the ferromagnetic core. These Trim&Form options provide greater flexibility to tackle mechanical integration challenges that through-hole packages represent. These MLX91217 current sensors feature extended on-chip filtering options, higher accuracy, and an increased diagnostic capability with programmable output clamping and broken wire detection. The MLX91217 current sensors address the applications with higher ASILs and/or connectors with increased diagnostic coverage and introduction of clamping and broken wire detection. These current sensors consist of on-chip filtering that allows for an accurate trade-off between bandwidth/response time and higher resolution. Typical applications include industrial, robotics, non-automotive transportation, hybrid, and electric powertrain.
Increased diagnostic capability:
Programmable output clamping
Broken wire detection
Extended on-chip filtering options
Automotive AEC-Q100 Grade 0
2.5µs response time
MLX91217 Conventional Hall Overview
Melexis PTC-04 Programmer for Melexis PTC Devices
Designed for efficient and precise calibration of the Melexis families of programmable ICs.
