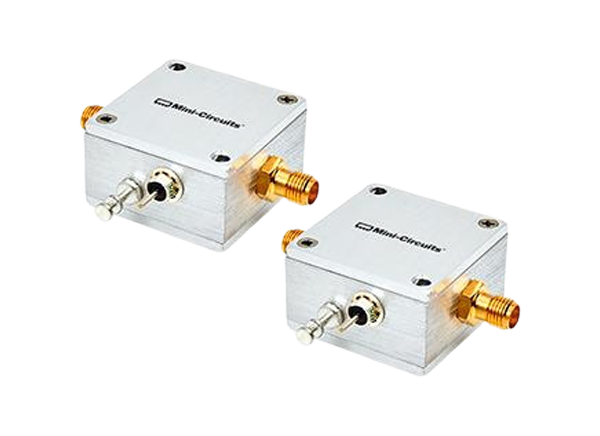

Mini-Circuits ZFL Coaxial Low Noise Amplifiers
Mini-Circuits ZFL Coaxial Low Noise Amplifiers provide a 2.9dB low noise figure and a 0.1MHz to 1200MHz wideband frequency range. The ZFL components feature a 17V maximum DC voltage and a +5dBm input RF power. The Mini-Circuits ZFL Coaxial Low Noise Amplifiers offer a -20°C to +71°C operating temperature in a Y460 package.
Features
- Wideband range of 0.1MHz to 1200MHz
- Rugged, shielded case
- Gain control of 60dB typ.
- Gain control voltage of 0V to +5V
- Variable gain of +34db to -26dB
- Low noise figure of 2.9dB typ.
- Protected by US Patent 6,943,629
Applications
- VHF/UHF
- Cellular
- Small signal amplifiers
Related Products
Mini-Circuits ZVA Series Wideband Amplifiers
Coaxial, medium power, high-frequency, and high gain amplifiers with up to 28dBm output power.

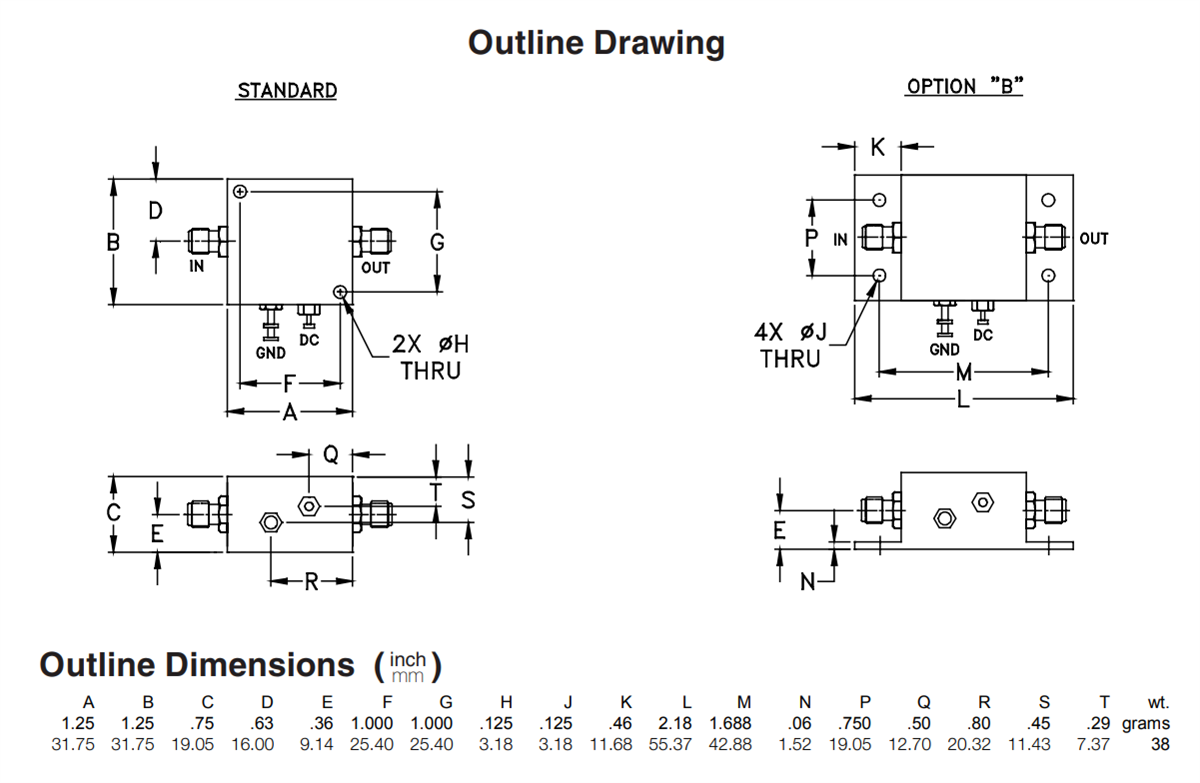

Outline Dimensions
