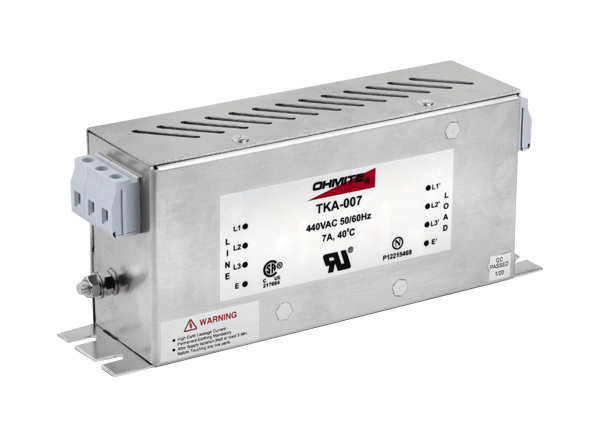

ARCOL / Ohmite TK Three-Phase Bookshelf-Type EMI Filters
ARCOL / Ohmite TK Three-Phase Electromagnetic Interference (EMI) Filters feature a bookshelf design and a 7A to 150A current rating. ARCOL / Ohmite TK Three-Phase EMI Filters are compact and light-weight and designed for applications requiring minimal space and convenient installation. The series specifically targets motor-drive applications that must maintain superior performance at significant interference levels.
Features
- Three-phase filters for drives and inverters
- Compact, light-weight, and cost-effective
- Bookshelf design
- 7A to 150A current rating at +40°C
Specifications
- 440VAC, 520VAC, or 600VAC maximum continuous operating voltage
- 50Hz / 60Hz operating frequency
- -25°C to +85°C operating temperature range
- Aluminum enclosure material
Applications
- AC/DC drives
- Generators
- Wind turbines
- Fuel cells
- Elevators
Circuit Diagram
