onsemi CMOS Image Sensor Solutions
onsemi CMOS Image Sensor Solutions include the Hyperlux sensing portfolio, featuring a diverse range of image and depth sensors tailored for automotive, industrial, and commercial applications. The onsemi PYTHON, XGS, and Hyperlux image sensors stand out with unique features and capabilities, delivering exceptional image quality with low power consumption. Designed to excel in challenging lighting conditions, these sensors offer high dynamic range and superior low-light performance, ensuring optimal results for your system in any environment.
Hyperlux LP: Feature Rich, Ultra-Low Power
.png "onsemi CMOS Image Sensor Solutions")
Features
• Stacked 1.4 µm BSI pixel
• Industry leading low power (e.g. AR0830 – 4k, 30fps, <100mW)
• Stacked design for the smallest size
• Wake-on-motion reduces power
• SmartROI saves bandwidth
Applications
• Doorbell cameras
• Indoor/outdoor home security
• Body cameras
• Battery-powered devices
• Robotics/AMR
• Video conferencing
Series
• AR0544 – 5MP, 1/4” format
• AR0830 – 8MP, 1/3” format
• AR2020 – 20MP, 1/2” format

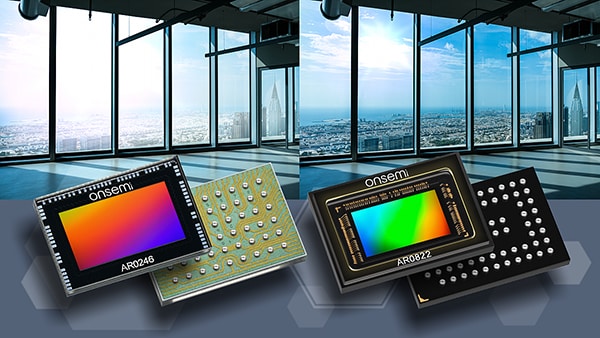

Hyperlux LH: Superior Low-Light, eHDR
Features
• Stacked 2.0µm BSI pixel
• Up to 120dB dynamic range
• eHDR saves system resources
• High NIR QE for active lighting
• Excellent low-light performance
Applications
• Professional security
• Video conferencing
• Car DVRs
• Factory automation
• Robotics
Series

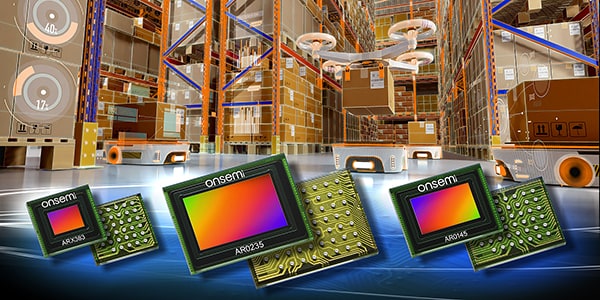

Hyperlux SG: World Class Global Shutter
XGS: Superior Low-Light
Features
• 3.2µm GS pixel
• 11x resolutions ranging from 2MP up to 45MP
• Full pin compatibility
• Excellent image quality
• Low power dissipation
Applications
• Professional security
• Factory automation/robotics
• Battery inspection
• Broadcasting
Series
• XGS5000 – 5MP, 2/3” format
• XGS12000 – 12MP, 1” format

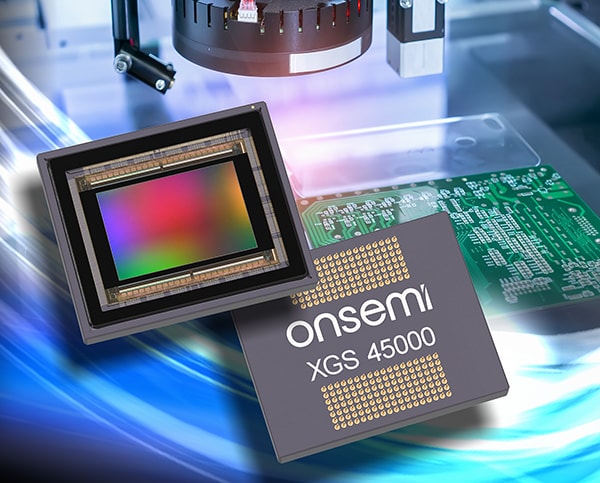

• XGS45000 – 45M, Super 35mm format
PYTHON: Feature Rich, Fast
Features
• 4.5µm/4.8µm GS pixel
• 11x resolutions, VGA up to 25MP
• Pin compatibility
• High full frame rate combined with quadratic speed increases in case of ROI readout
Applications
• Tracking
• Inspections
• General-purpose MV
Series
• PYTHON1300 – 1.3MP, 1/2” format
• PYTHON5000 – 5MP, 1” format

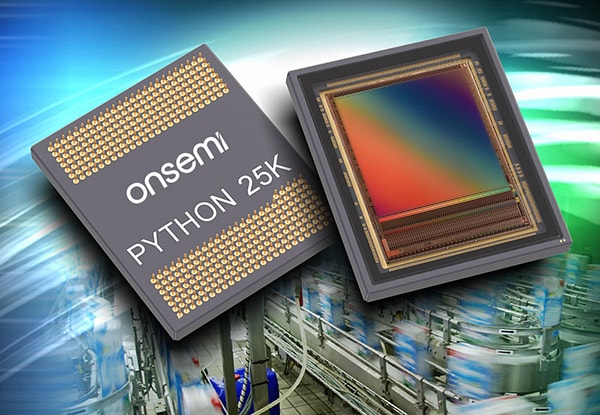

• PYTHON25K – 25M, APS-C format
