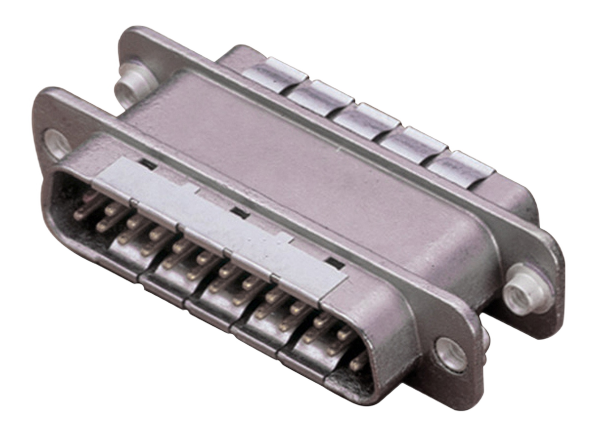

Spectrum Control 5G D-Sub Filtered Connectors
Spectrum Control 5G D-Sub Filtered Connectors are ideal for test enclosures for high-frequency testing, including 5G cellular hardware. Spectrum Control 5G D-Sub Filtered Connectors are capable of 70dB from 1GHz to 6GHz in a D-sub connector adapter form factor. The coaxial filter design includes all soldered electrical connections, resulting in low equivalent series resistance/equivalent series inductance (ESR/ESL) at frequencies up to 6GHz and beyond.
Features
- Capable of 70dB from 1GHz to 6GHz in a D-sub form factor
- Four-pole circuit utilizing materials designed for 5G cellular bands
- Coaxial filter design with all electrical connections soldered for low ESR/ESL at frequencies up to 6GHz and beyond
- 25-pin adapter geometry perfect for test enclosure applications requiring fast and easy plug and play on both sides
- One-piece, die-cast housing and integrated ground clips for more effective high-frequency shielding and shell-to-shell continuity
- Threaded inserts for easy installation
- RoHS compliant
Applications
- Test enclosures for high frequency testing
- 5G cellular hardware
- Wireless
- Telecom
Specifications
- 150V dielectric withstanding voltage
- 50V working voltage
- -55°C to +125°C operating temperature range
- 1000pF and 4000pF capacitance levels available
